RF Beauty Devices
RF + EMS Facial Beauty Device with Adaptive Movable Electrodes
A 4-in-1 home beauty device combining 1MHz RF, EMS, vibration and multi-color LED technology. Independently movable electrodes adapt to facial contours for improved skin contact and more consistent treatment coverage.
Specifications
- Model
- BSP01
- Product Name
- Home‑use Radio Frequency Beauty Instrument
- Material
- ABS+PC, stainless steel,
- RF Frequency
- 1MHz
- RF Max Output
- 7W
- EMS Voltage
- 0–24V
- EMS Current/Frequency
- <40mA / 700Hz
- Vibration Speed
- 8000±10% rpm
- LED Wavelengths
- Red (anti‑wrinkle), Blue (antibacterial), Green (brightening)
- Electrode Type
- Independently movable, 316 medical‑grade stainless steel
- Head Diameter
- 50mm
- Battery
- 2400mAh
- Charging Time
- Approx. 4–5 hours ( Type‑C)
- Working Time
- Up to 1 hour (full power)
- Power Input
- 5V/1A (max charging current 580mA)
- Standby Current
- ≤75µA
- Certifications
- CE, ROHS, FCC
- Warranty
- 1‑year

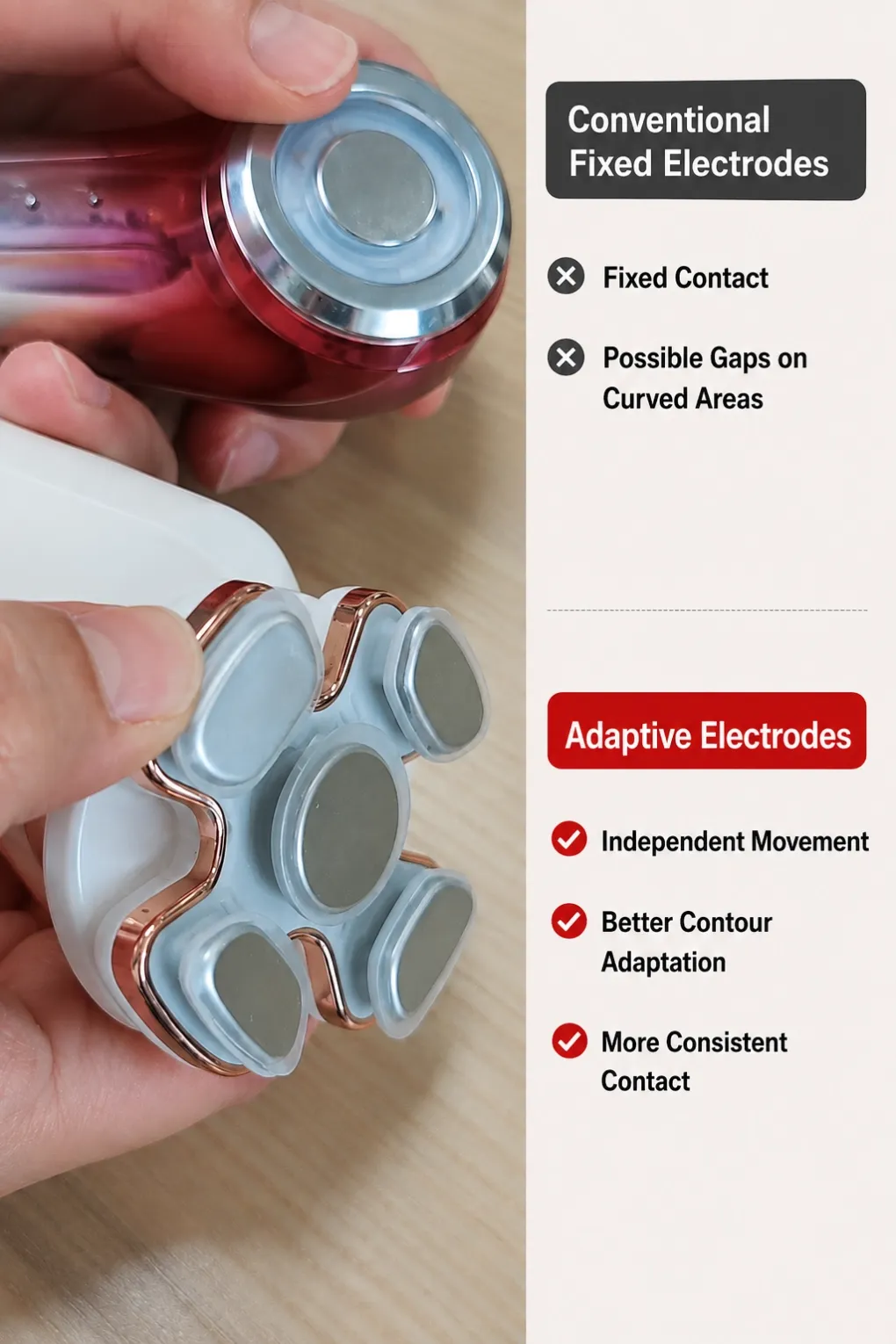

Adaptive Movable Electrodes
Designed to Follow Facial Contours
Unlike fixed treatment heads, this one uses independently movable electrodes that adjust to different facial contours, helping maintain more consistent contact across areas such as the cheeks, jawline and forehead.

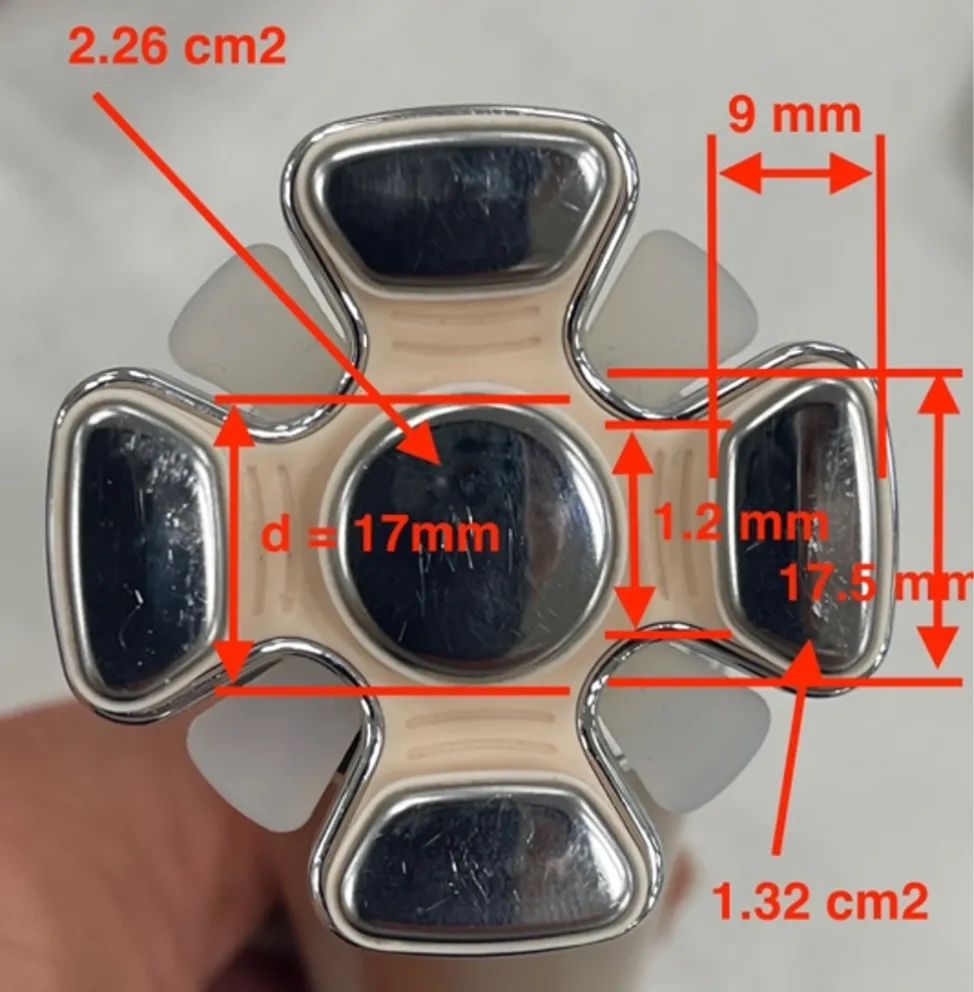

50mm Large RF Head Designed for Broader Treatment Coverage
Head material: 316 Medical Grade Stainless Steel. The total surface area of the 5 silver pieces: 7.54cm²
4-in-1 Facial Beauty Technology
RF
1MHz Radio Frequency
Controlled RF energy for home facial care.
EMS
<40mA / 700Hz
Electrical muscle stimulation with adjustable output.
VIBRATION
8000 rpm
High-frequency vibration for a comfortable massage experience.

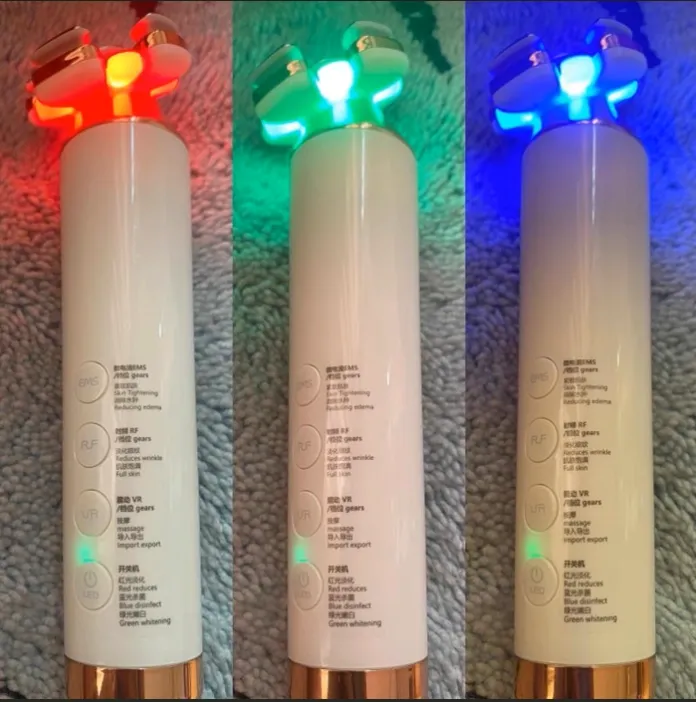

LED
Red • Blue • Green
Three LED light options integrated into one treatment head.
Built-In Safety Protection
10-Min Auto Shut-Off
Helps prevent unintended prolonged use.
No-Load Protection
Output control when proper skin contact is not detected.
Current Limiting
Designed to keep electrical output within defined parameters.
Temperature / Energy Control
Engineered for controlled home-use operation.
Designed for Convenient Home Use
2400mAh Battery
Rechargeable battery designed for cordless beauty routines.
What's Included
RF Beauty Device Main Unit
Type-C Charging Cable
User Manual
Packaging Box
Develop RF device for your market with OEM/ODM support for branding, packaging and project-specific product requirements.
Custom Logo
Private Branding
Custom Packaging
Retail-Ready Presentation
Product Configuration
Project-Based Options
Compliance Support
Documentation for Target Markets
RF + EMS FACIAL DEVICE FAQ
1. What technologies are integrated into this RF + EMS facial device?
The device combines radio frequency (RF), EMS microcurrent and LED light therapy in one home-use facial care system. The RF head uses 5 electrodes, while the EMS function offers 3 adjustable intensity levels for different user preferences.
2. How large is the RF treatment head?
The device features a 50 mm diameter RF head, providing a relatively large contact area for facial treatment.
3. How many electrodes does the RF facial device have?
The RF treatment head is designed with 5 electrodes.
4. What LED light colors and wavelengths does the device use?
The device supports three LED light colors:
- Red Light: 630 nm ±10 nm
- Blue Light: 465 nm ±10 nm
- Green Light: 515 nm ±10 nm
The device contains 4 LEDs supporting three color modes.
5. How many EMS intensity levels are available?
The EMS microcurrent function provides 3 adjustable intensity levels, allowing users to select the setting that best suits their comfort and treatment preference.
6. Does the RF + EMS facial device have automatic safety protection?
Yes. According to the technical specification, the device includes an automatic 10-minute shut-off, current-limiting protection, and startup no-load protection. RF heating stops when the maximum set current is reached.
7. Does the device have no-load protection?
Yes. The device supports startup no-load protection, adding an additional control mechanism when the device is not properly loaded during startup.
8. Does the EMS system use Type BF isolation?
Yes. The EMS current isolation is specified as Type BF and is intended for facial use.
9. Does the RF + EMS facial device use constant current or constant voltage control?
The EMS system uses constant-voltage control rather than constant-current control, according to the current technical specification.
10. What is the maximum EMS output current?
The specified peak EMS current is 20 mA.
11. What are the EMS pulse specifications?
According to the technical specification, the EMS system uses 60 pulses per packet, approximately 30K pulses per second, with a 2-second pulse packet duration and a 50% duty cycle. The specified cycle timing is 2 seconds ON / 0.5 seconds OFF.
12. How is the RF + EMS facial device powered?
The device uses a built-in rechargeable battery, so no external power adapter is required during treatment.
13. Does the device have a low-battery indicator?
Yes. The device provides a low-battery warning at 3.2V, helping users know when the unit needs to be recharged.
14. How much does the RF + EMS facial device weigh?
The device weighs approximately 180 g, making it suitable for handheld facial treatment.
15. Can this RF + EMS facial device be customized for private label brands?
OEM/ODM customization is available for beauty brands, distributors and private-label projects. Customization options can be discussed based on your branding, packaging and product requirements.
16. Can I order an RF + EMS facial device sample before bulk production?
Sample evaluation can be arranged before bulk production. Contact our team with your target market and project requirements for current sample options.
